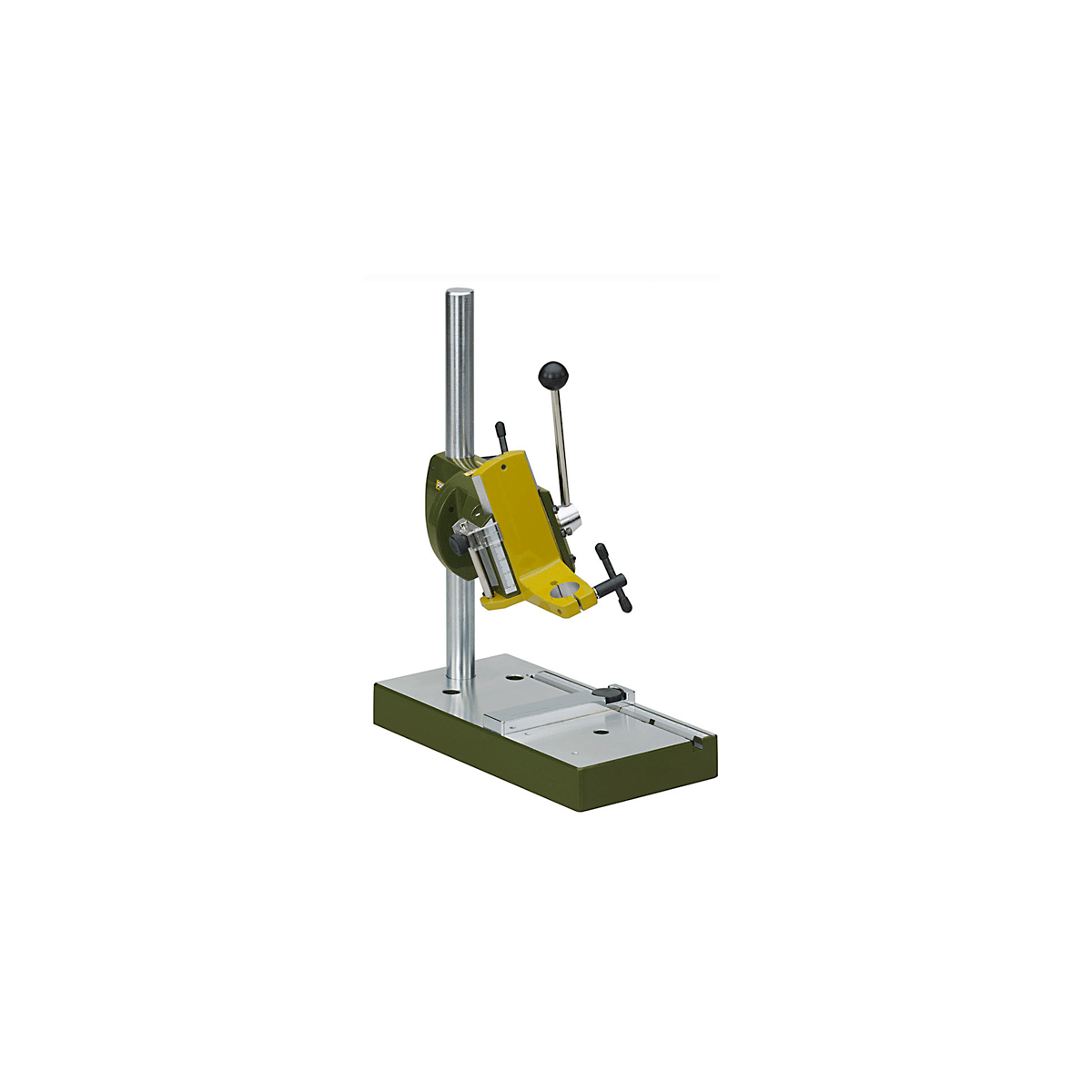

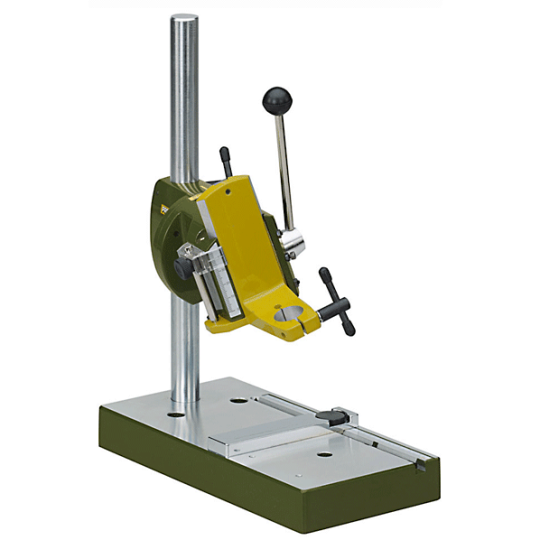

MB 200 - MICROMOT Proxxon drilling support - PRX-28600

MICROMOT MB 200 Proxxon drilling support - 28600

Head with 90° rotating dovetail (graduated ring available). Allows for angled drilling and versatile milling.

Powerful, high-speed rack and pinion with return spring for effortless sensitivity. Convenient drilling depth indicator with adjustable stop (maximum travel 40 mm). 20 mm collet for drills and milling machines. Solid chrome-plated steel column (280 x 20 mm), reach (inside the column to the center of the tool) 140 mm.

Platform (220 x 120 mm) with parallel stop and graduations. Pre-drilled holes are provided for mounting the MICRO-coordinated KT 70 table and the support bracket. Weight 2.2 kg.

Noticed :
Our designers prefer die-cast aluminum. A premium, rust-resistant, and durable material. Fittings and guides are machined on our state-of-the-art CNC machines (milling, broaching, turning). Pure precision!


MICROMOT MS 4 Machine Vise - NO 28 132
Made of cast aluminum. Three milled bearing surfaces. With a groove, also compatible with the longitudinal stop of the TBM 220 bench drill, and the MB 140/S and MB 200 drill stands. Vertical and horizontal prism for round materials. Jaw width 50 mm. Jaw height 10 mm. Maximum jaw opening 34 mm.
