Proxxon MICROMOT 80/E Drill (clamps) 230V - 28505

The Proxxon MICROMOT 80 series comprises compact drills designed for precision work. The MM 80/E set, part number 28505, operates on mains power with the included 230V switching power supply; no separate transformer is required. Each set is delivered in a MICROMOT case with an initial set of accessories.

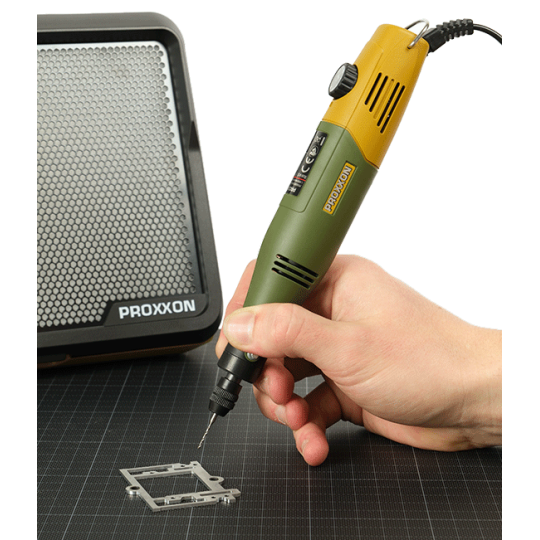

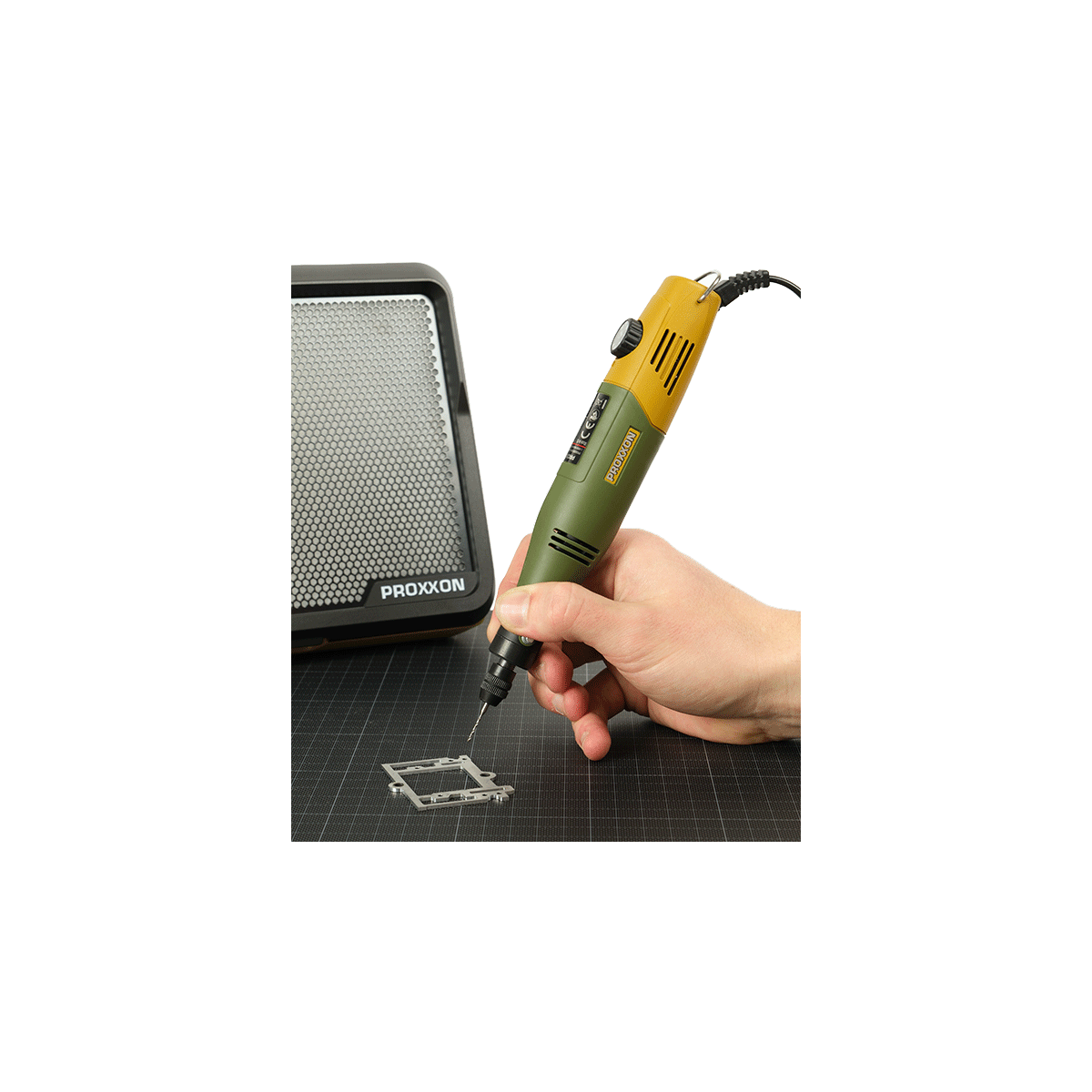

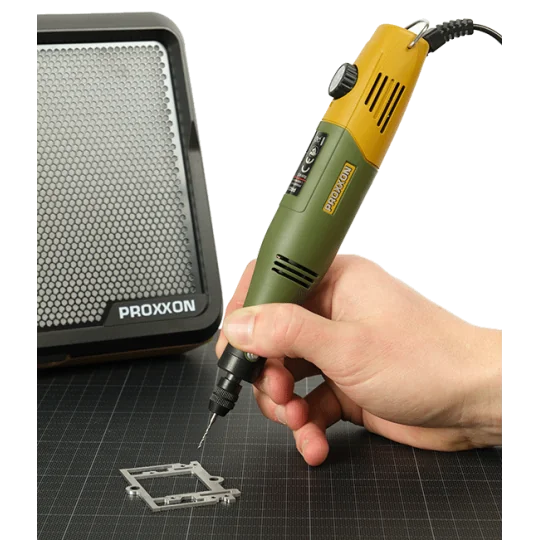

A micro drill is particularly useful in a model-making workshop for fine drilling, milling, sanding, grinding, engraving, or polishing operations, provided the appropriate accessory is used for the material and the operation being performed. It allows for working on small model parts, components made of plastic, wood, metal, or composite materials, as well as details of RC assemblies.

The MICROMOT 80 range offers two clamping configurations to suit different working habits. The MM 80/E Precision-Set uses high-precision collets , a solution ideal for concentric clamping of shank accessories. The MM 80/EF Universal-Set, on the other hand, features a universal chuck , designed to facilitate the mounting of drill bits, milling cutters, and other compatible accessories.

The rotation speed is adjustable from 5,000 to 22,000 rpm . This adjustment allows you to adapt the working speed to the mounted tool, the material being machined, and the desired level of finish. The machine has an M8 x 0.75 thread, is 220 mm long, weighs 230 g , and has a 1.80 m cable.

Thanks to its compact size, this Proxxon rotary tool is ideal for assembling and modifying static models, preparing RC bodies, fitting parts, deburring, or manufacturing small components. The choice between part numbers 28505 and 28507 depends primarily on the desired clamping system: high-precision collets for the MM 80/E, or a flexible universal chuck for the MM 80/EF.

• Type: Compact rotary tool
• Brand: Proxxon
• Series: MICROMOT 80
• Reference MM 80/E Precision-Set: 28505
• Power supply: 230 V with supplied switching power supply
• Speed range: 5,000 to 22,000 rpm
• MM 80/E clamping system: high-precision clamping collets
• Thread: M8 x 0.75
• Length: 220 mm
• Weight: 230 g
• Cable length: 1.80 m

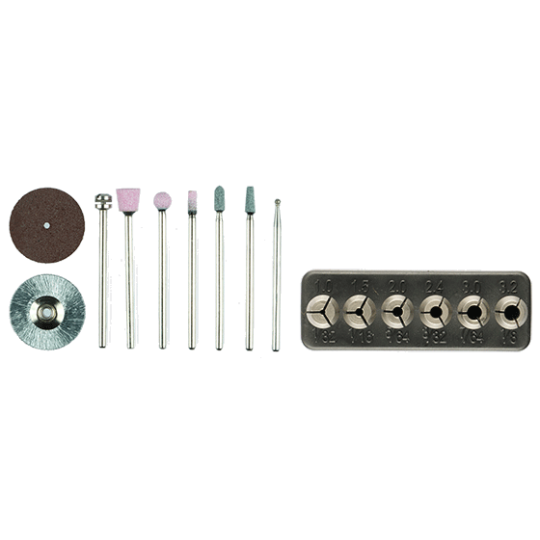

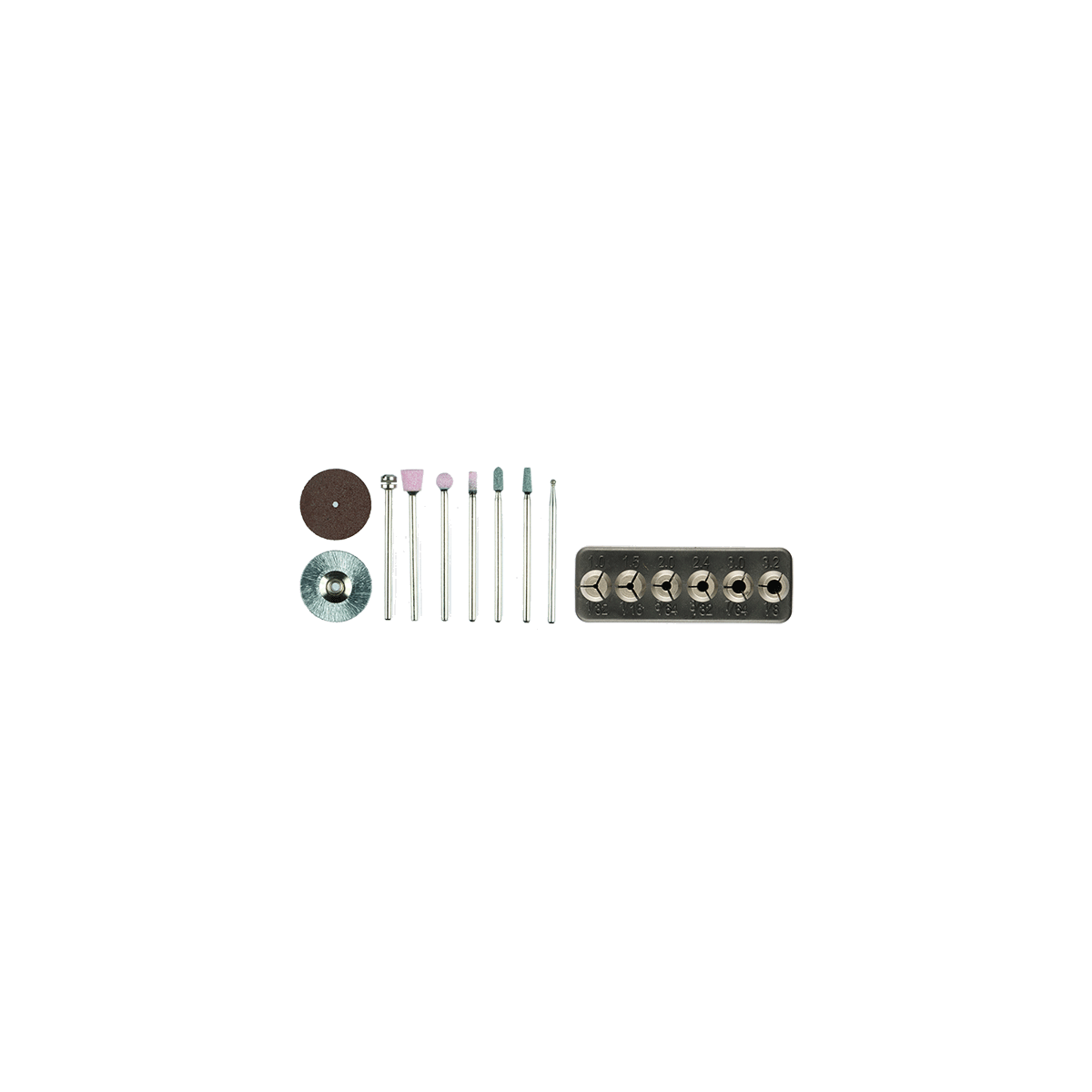

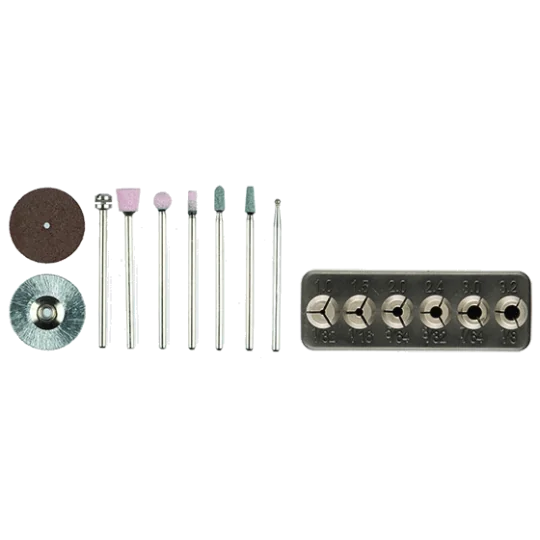

• Advertised contents: tool, switching power supply, starter set of accessories and MICROMOT box
