Proxxon engraving and model-making kit with MICROMOT 60/E - PRX-28515

Engraving set for model makers with MICROMOT 60/E drill/milling machine

• For drilling, milling, sanding, polishing, brushing, cutting and engraving. For processing steel, precious metals, glass, ceramics, plastics and minerals.
• With safety voltage at low voltage. Therefore also suitable for working with coolant (polishing and cutting under liquid).
• For electronics hobbyists, model makers, precision mechanics, goldsmiths, opticians, sculptors, pedicurists, dentists, tool and mold makers.

MICROMOT 60/E Drill-Milling Machine:

Electronic progressive speed control and high drive power at low speed. Tool holder with MICROMOT steel collets (1 piece 1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm).

Technical data:

DC 12 - 18 V. 40 W. 5,000 - 20,000/min.
Length of 220 mm.
Weight 230 g.

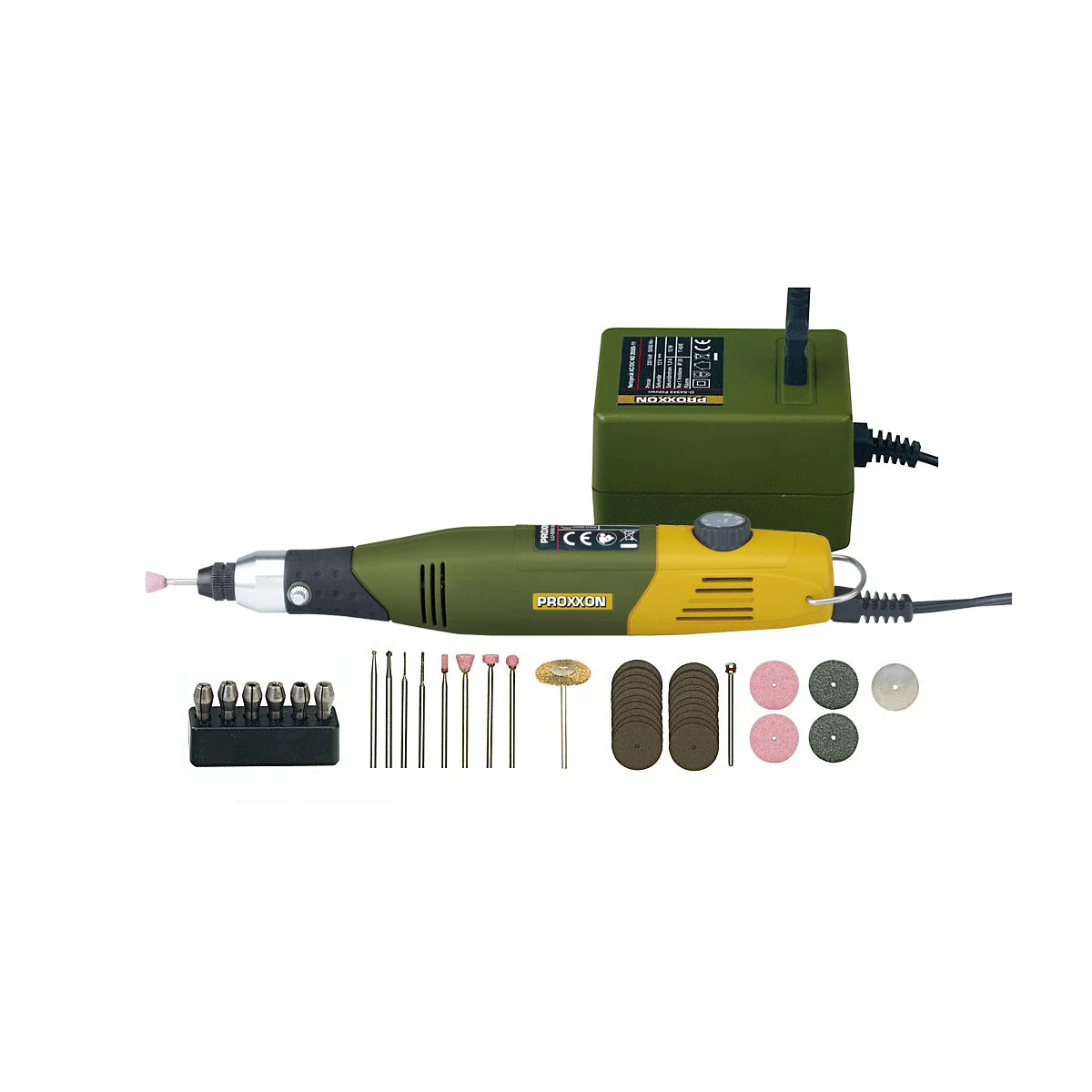

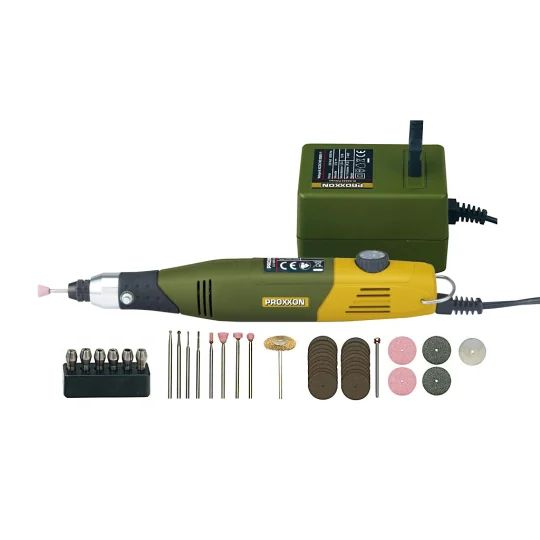

Supplied with 34 industrial and dental grade accessories:

1 diamond grinding wheel on a shank, 1 fine milling cutter, 1 micro drill bit (0.5 mm and 1 mm), 1 brass brush, 4 corundum grinding wheels on shanks (cylinder, ball, wheel, and cone), 1 elastic polisher, 2 corundum grinding discs and 2 silicon carbide grinding discs, 20 cutting discs, and 1 tool holder. Also included are 6 MICROMOT collets (1 to 3.2 mm). Comes with a 230 V (12 V, 1 A) power adapter. Supplied in an elegant, robust plastic case.

MICROMOT steel collets are hardened, giving them high and consistent elasticity. They maintain the necessary precision even after prolonged use (unlike unhardened 4-slot collets or those made of brass or aluminum). The triple slot, which is much more difficult to manufacture than a quadruple slot, provides a better grip. This is particularly important for centering small-diameter rods.

Noticed :

The speed control on our 12-volt units only works with unregulated power supplies (e.g., all MICROMOT transformers). Connection to regulated power supplies is possible. However, the devices will then operate at maximum speeds (this also applies to battery operation).

Suitable accessories:

Foot switch FS - NO 28700
Work hands-free. For all devices with a European plug (class 2) and a power rating up to 500 W max. Also suitable for benchtop devices. Housing made of fiberglass-reinforced nylon. 250 cm cord for 230 V mains power. 50 cm output cable. For 12 V devices, the switch can be connected to the transformer.
