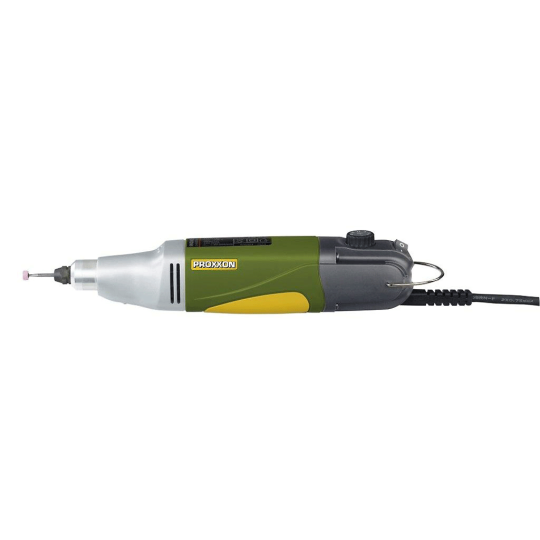

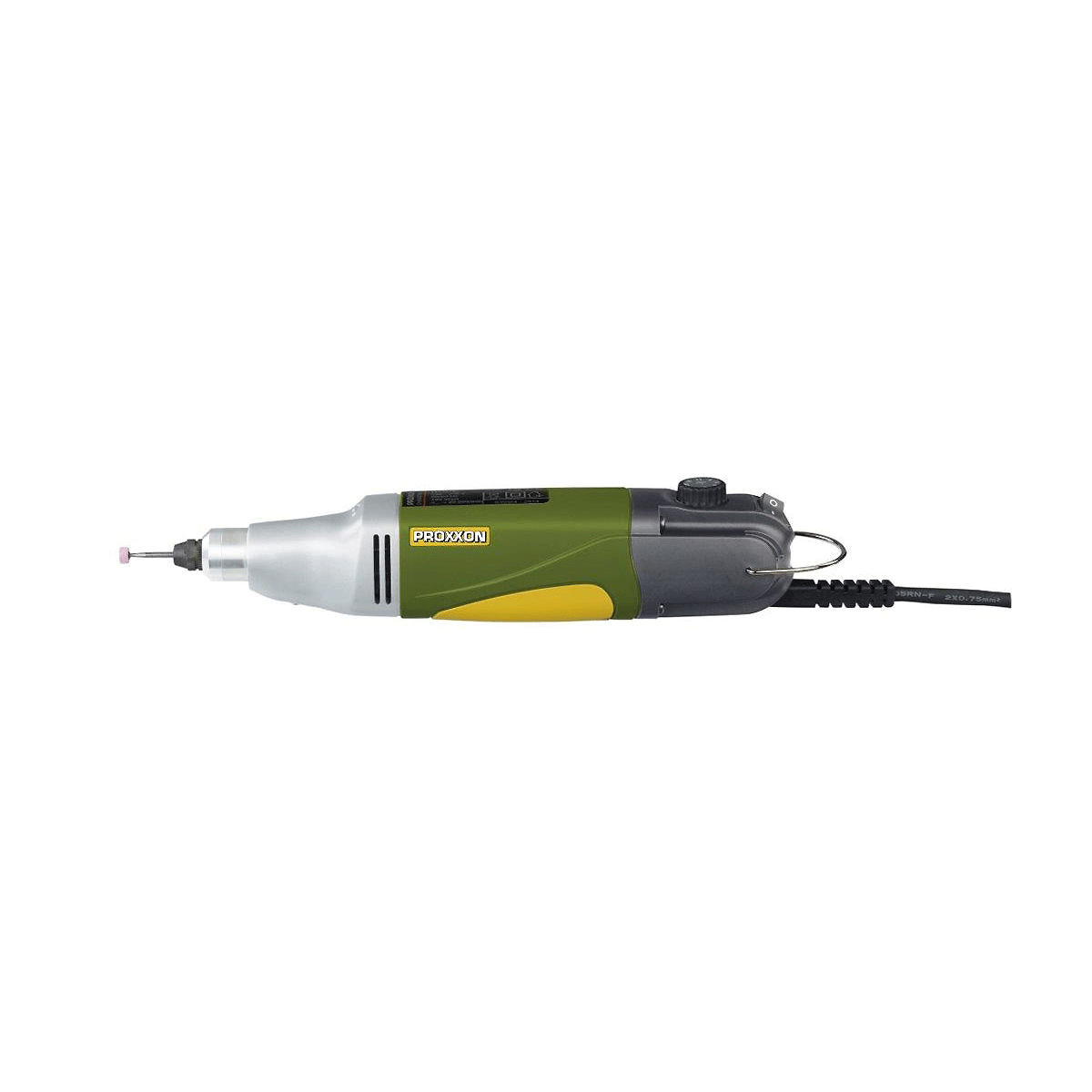

IBS/E - Proxxon 100W Industrial Drill/Milling Machine - PRX-28481

For drilling, milling, grinding, sanding, cleaning, cutting, engraving and signing. For precision mechanics, model making, jewelry, optics, applied arts and electronics.
High concentricity accuracy (max. 3/100 mm). No chatter or tool runout.

1. Ground steel shaft mounted on a double bearing. Tool change with shaft locking button.
2. Narrow cast aluminum transmission head allowing precise bearing adjustment for improved stability under extreme load.
3. Silent 100W motor ensuring good power transmission with full-wave electronic regulation, from 5,000 to 22,000 rpm.
4. Uncompromising safety: Class 2 protective insulation.

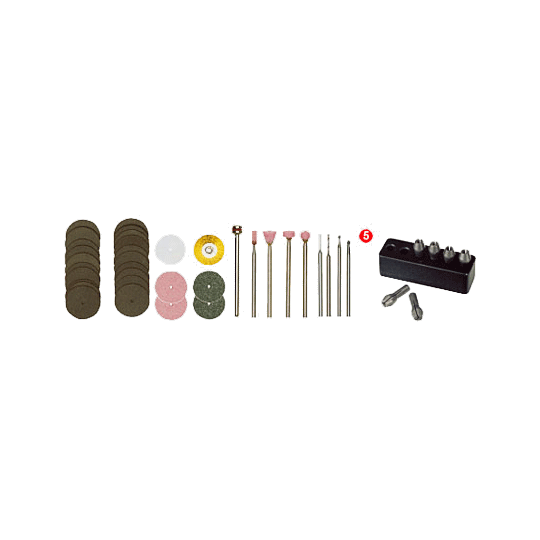

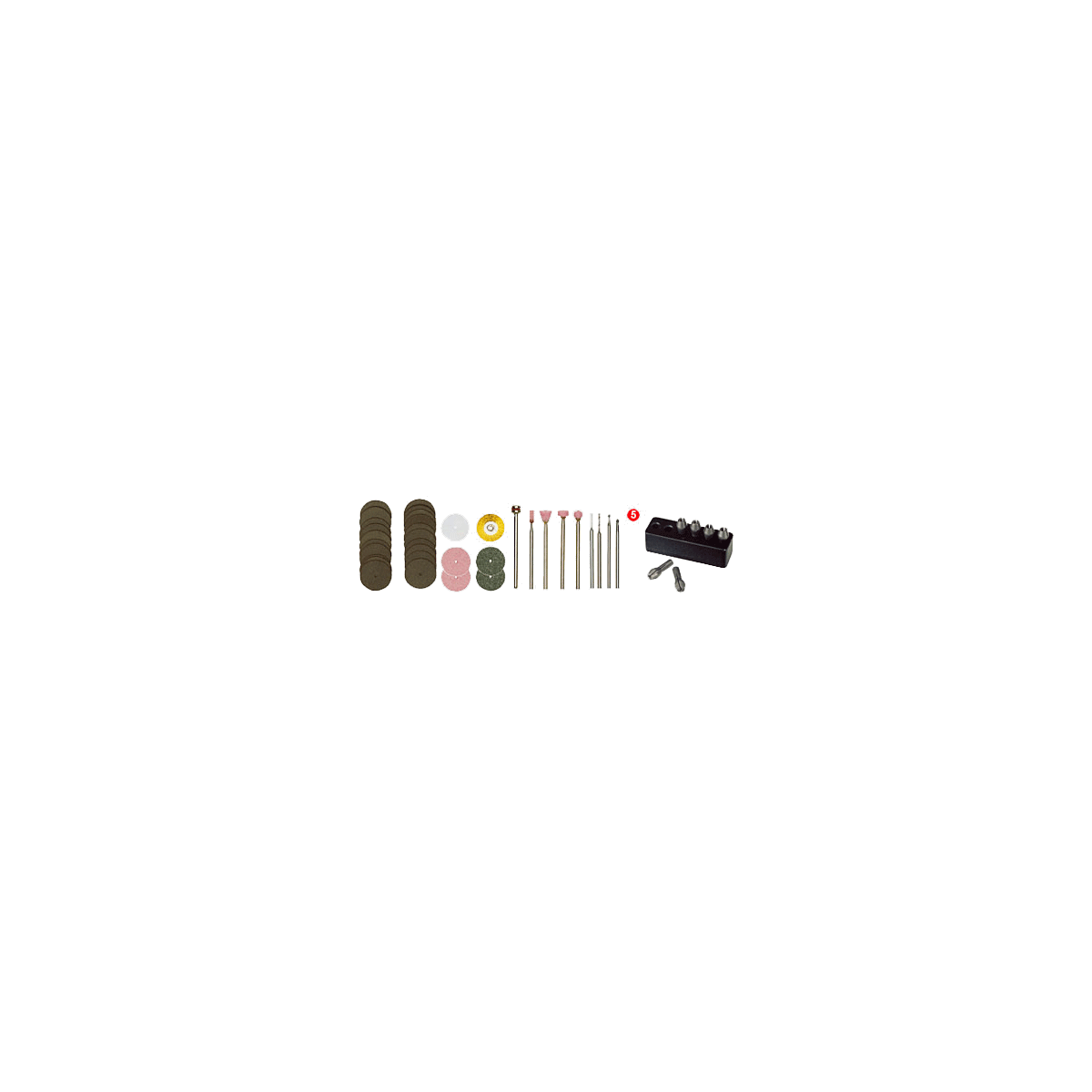

5. Includes 34 industrial-grade tools. All rods are Ø 2.35 mm. Supplied with 6 triple-slotted steel clamps from 1 to 3.2 mm.

A best-selling, specially balanced DC motor drill. Features progressive electronic speed control (full-wave electronics). Ground steel shaft mounted on ball bearings. Includes six triple-slotted steel collets (1, 1.5, 2, 2.4, 3, and 3.2 mm) and a locking nut. Die-cast aluminum drive head with a 20 mm Micromot collar for use on drill stands and horizontal supports. Central housing made of fiberglass-reinforced polyamide. Supplied in a plastic case with 34 tools.

For use on a table or workbench, we recommend our tools with a mains connection. They are lighter, more maneuverable (shorter) and have no limitations in their use.

The heart of our MICROMOT precision tools for 230 V: Relatively expensive special DC motor with permanent magnet technology.

Technical data:

230 V. 5,000 - 22,000 rpm. 100W.
Length 230 mm.
Weight 500 gr.
Class 2 protective insulation.

Comes with a high-quality PP case. Well-designed, sturdy, and with a large capacity. For storing the device after use. The sticker on the side allows you to identify the contents.

Noticed:
MICROMOT steel clamping pliers are hardened, giving them high and constant elasticity They retain the necessary precision even after prolonged use (unlike unhardened 4-slot clamps or those made of brass or aluminum). The triple slot which is much more difficult to achieve than a quadruple slit, allows us to obtain improved stability. This is particularly important for centering small diameter rods.

Accessories :

MICROMOT steel clamping pliers set
Three-slot and hardened. Sizes: 1 - 1.5 - 2 - 2.4 - 3 and 3.2. With locking nut and storage base (see below).

NO 28 940
